Bottom Entry Mixers

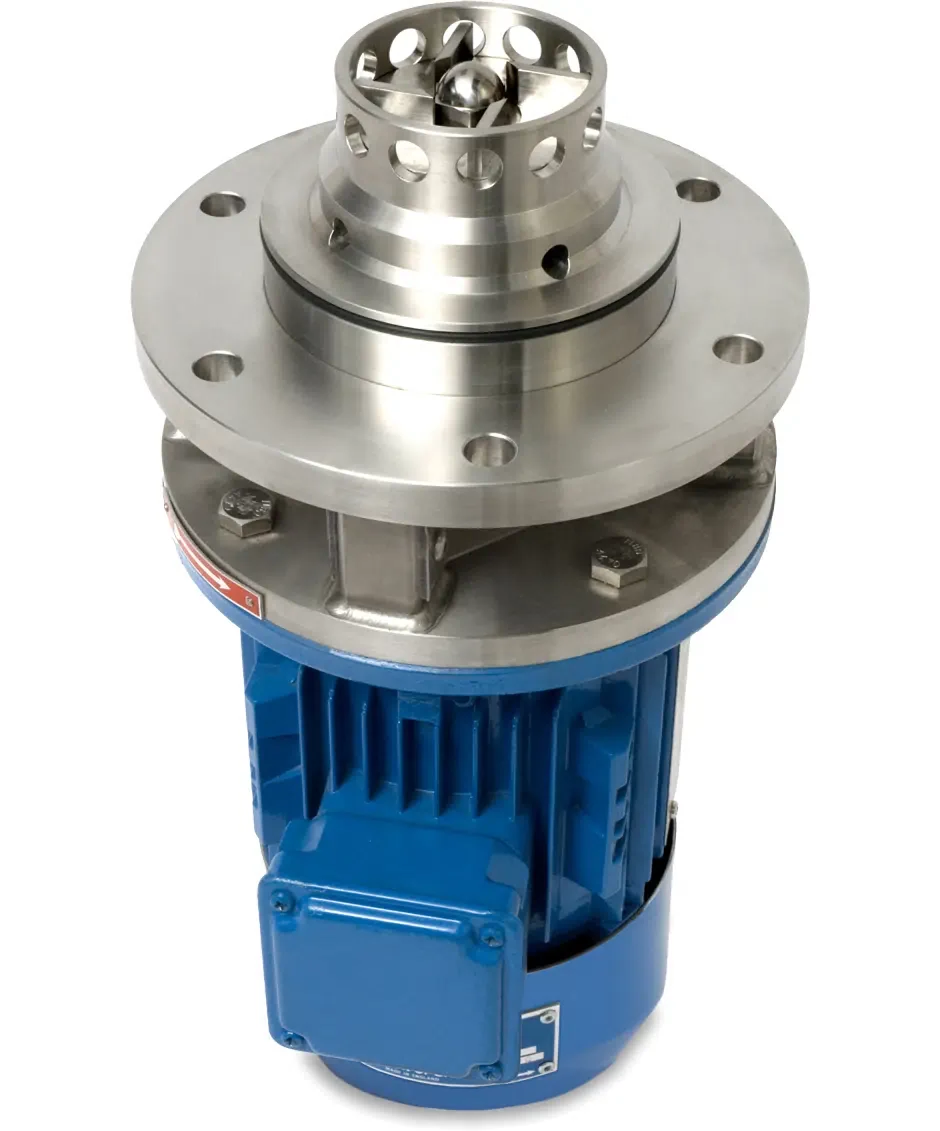

Silverson’s sanitary series of high shear Bottom Entry mixers are designed to fit into the bottom or side of a mixing vessel. These high shear mixers are typically used in conjunction with a slow speed anchor stirrer or scraper unit for high viscosity products. The Silverson Bottom Entry mixer gives high shear homogenization while the stirrer/scraper distributes the homogenized output uniformly through the vessel. This is ideal for high viscosity cosmetic, pharmaceutical and food products.
Bottom Entry mixers can also be used by themselves on low viscosity products and to wet out powders. Silverson Bottom Entry mixers offer full compliance with cGMP and USDA requirements.
How It Works
The advantages of Silverson’s Bottom Entry mixer over simple conventional stirrers or agitators stem from the multistage mixing/shearing action as materials are drawn through the specially designed Silverson workhead - the heart of every machine.
The high speed rotation of the rotor blades exerts a powerful suction, drawing liquid and solid materials downwards into the center of the workhead.
Centrifugal force then drives the materials towards the periphery of the workhead where they are milled in the clearance between the rotor and the stator.
The materials are subjected to intense hydraulic shear as they are forced out through the stator and projected radially at high speed towards the sides of the mixing vessel. Fresh material is simultaneously drawn into the workhead, maintaining the mixing cycle.
-
Stage 1
Stage 1
The high speed rotation of the rotor blades exerts a powerful suction, drawing liquid and solid materials downwards into the center of the workhead.
-
Stage 2
Stage 2
Centrifugal force then drives the materials towards the periphery of the workhead where they are milled in the clearance between the rotor and the stator.
-
Stage 3
Stage 3
The materials are subjected to intense hydraulic shear as they are forced out through the stator and projected radially at high speed towards the sides of the mixing vessel. Fresh material is simultaneously drawn into the workhead, maintaining the mixing cycle.
Videos
Bottom Entry Mixer
Workheads
General Purpose Disintegrating Head
Used for a wide range of applications, this head will give the greatest throughput. Suitable for the blending of liquids of similar or greatly varying viscosities, its uses include the disintegration of solid and semi-solid materials.
Square Hole High Shear ScreenTM
Provides exceptionally high shear rates and is ideal for the rapid size reduction of soluble and insoluble granular solids. It is also suitable for the preparation of emulsions, gels and thickeners and fine colloidal suspensions.
Slotted Disintegrating Head
For the disintegration of fibrous materials such as animal and vegetable tissue, as well as the disintegration and solubilization of “elastic” materials such as rubbers and polymers.
Technical Information
- Capacity
- 5 - 2000 gallons.
- Materials of Construction
- All wetted parts in 316L stainless steel. Special material on request.
- Motor Specification
- TEFC, washdown duty and explosion proof motors are available as standard.
- Mounting
- Stainless steel circular flange fitted as standard.
- Sealing
- Single or double mechanical shaft seals available as standard.
- Operating Pressures
- From full vacuum up to 150psi (10 Bar). Higher pressure units are available on request.
| HP | R.P.M | TEFC A | EXPF A | B | C | D | E | F | |
|---|---|---|---|---|---|---|---|---|---|
| BE243 | 1 | 3600 | 12 5⁄8 | 12 ¾ | 2 5⁄8 | 6 | 5 | 4 | 6 x 7⁄16 |
| BE275 | 2 | 3600 | 13 | 12 ½ | 3 | 8 ¼ | 7 | 5 | 6 x 9⁄16 |
| BE387 | 5 | 3600 | 18 ¼ | 18 ¾ | 3 ¼ | 10 ½ | 9 ½ | 7 ½ | 8 x 9⁄16 |
| BE425 | 7.5 | 3600 | 19 | 19 ¾ | 3 ¼ | 10 ½ | 9 ½ | 7 ½ | 8 x 9⁄16 |
| BE450 | 15 | 3600 | 24 ¾ | 24 ¾ | 4 1⁄8 | 10 ½ | 9 ½ | 7 ¾ | 8 x 9⁄16 |
| BE500 | 25 | 3600 | 24 | 26 | 4 ½ | 12 | 10 ½ | 7 ¾ | 8 x 11⁄16 |
| BE600 | 40 | 3600 | 37 | 35 ½ | 4 11⁄16 | 12 | 10 ½ | 8 ½ | 8 x 11⁄16 |
The dimensions shown are approximate only and certified diagrams should be used for installation purposes. Silverson reserves the right to change dimensions and specifications without notice.
Mixer Options
Silverson Bottom Entry mixers are typically used in conjunction with a stirrer/scraper unit. The Bottom Entry mixer gives high shear homogenization while the stirrer/scraper distributes the homogenized output uniformly throughout the vessel. This is ideal for high-viscosity cosmetic, pharmaceutical and food products. They can also be used on low viscosity products to wet out powders. Clean-in-place design with a simple, easy to clean construction.
Silverson has advanced their line of Bottom Entry mixers to offer an ultra-hygienic unit incorporating several options, including minimized number of product contact parts, electro-polished finish and special hygienic shaft seals.
The Ultramix can be supplied as a Bottom Entry unit, ideal for ultra-sanitary applications in the pharmaceutical and food industries.
-
Bottom Entry Mixer
Bottom Entry Mixer
Silverson Bottom Entry mixers are typically used in conjunction with a stirrer/scraper unit. The Bottom Entry mixer gives high shear homogenization while the stirrer/scraper distributes the homogenized output uniformly throughout the vessel. This is ideal for high-viscosity cosmetic, pharmaceutical and food products. They can also be used on low viscosity products to wet out powders. Clean-in-place design with a simple, easy to clean construction.
-
Sanitary Range
Sanitary Range
Silverson has advanced their line of Bottom Entry mixers to offer an ultra-hygienic unit incorporating several options, including minimized number of product contact parts, electro-polished finish and special hygienic shaft seals.
-
Ultramix Bottom Entry
Ultramix Bottom Entry
The Ultramix can be supplied as a Bottom Entry unit, ideal for ultra-sanitary applications in the pharmaceutical and food industries.
